Installation of Baxi Solo innova 50 In an Estate house
Stove Shop has supplied and Installed a Baxi Solo Innova 50 in an estate house near Plymouth
The Baxi Solo Innova 50 Installation process:

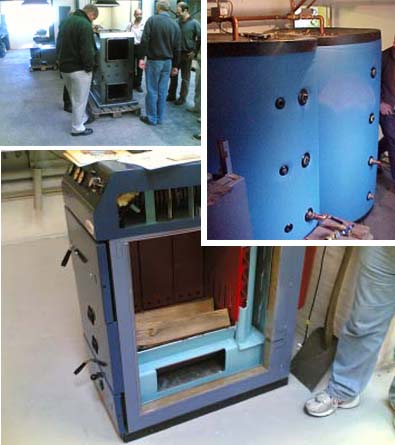

Neil Austin and Stuart Bennet (above) go to Denmark and spend three days at the Baxi factory, receiving lectures and 'hands on' training in firing and commisioning techniques.

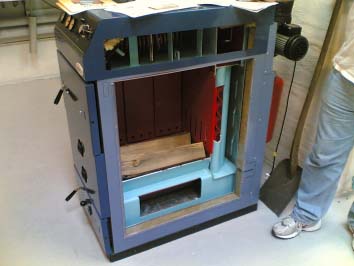

This led to them becoming accredited installers of Baxi's wood burning and multi fuel boilers. Shown on the left is the inside of the Innova.

Back in Cornwall we meet the challenge of fitting the Solo Innova 50 into an existing boiler room. Two 800 litre cylinders connected in tandem accept the heating load and still leave space for a walk way! A new 1500 x 450 foam insulated hot water cylinder (out of frame) care for domestic hot water to four bathrooms. To accomodate the increased expansion of the system (calculated at 150 litres) a new 300 litre head tank was installed in the loft.

The entire heating load of 75,000btu and the whole domestic hot water requirement can be met using dry wood from the estate managed woodland in the 5-Kw Baxi Solo Innova burning once, or sometimes twice per day. The house was formerly heated by an inefficient and expensive to run oil boiler, and now the new boiler grows its own fuel!

Biomass Boilers Looe

Looe Biomass Boilers
About the Baxi Solo range:
Biomass Boiler Installation Cornwall A heat only or system boiler can provide the hot water you need
Stove Installers Fowey It is also known as a conventional or regular boiler
Stove Installers Fowey Cold water from the storage tank is fed to the hot water storage cylinder
Stove Installers Fowey Heat only boilers are usually installed on an open vented system

Stove Installers Fowey

It is suitable for both open vented and sealed heating systems
